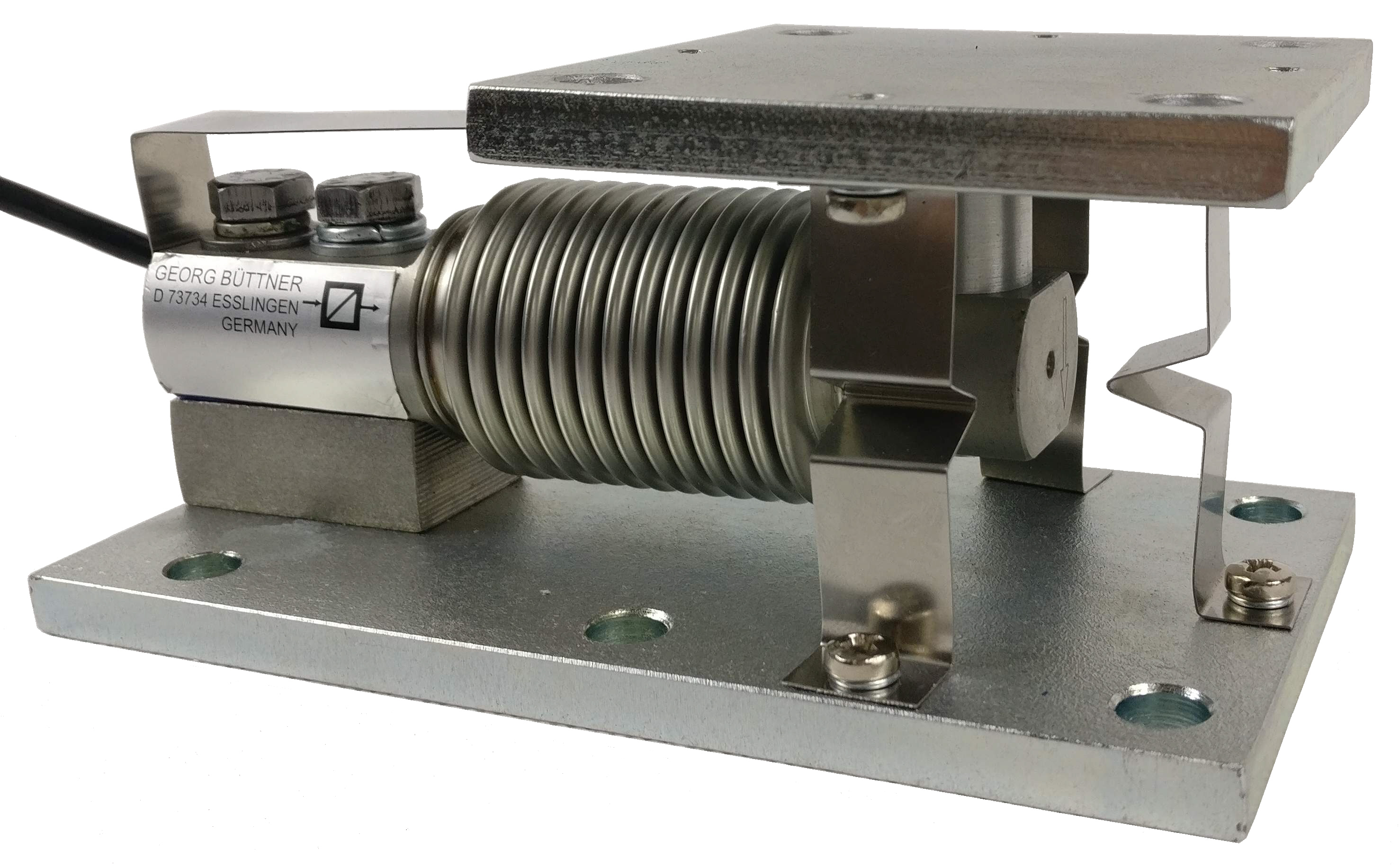

Weighing Module BC-M84DCapacities: 50, 100, 200, 250, 350, 500 kg.

BC-M84D

Attributes

  • For Compression Load
  • Parallel Connection possible
  • Easy Mounting
  • Environmental Protection IP 68
  • Input Resistance 460 Ω ± 50 Ω
  • Output Resistance 350 Ω ± 3.5 Ω
  • Insulation Resistance > 5 GΩ
  • Load Cell Body made of Stainless Steel (17-4PH)
  • Other Parts made of Stainless Steel or Galvanised Steel
  • Sensitivity 2.00 mV/V
  • Accuracy Class C3
  • Non-Linearity ≤ 0.018 %
  • Zero Balance ≤ 1 %
  • Safe Load Limit 150 %
  • Breaking Load 300 %
  • ATEX Certificate as option
