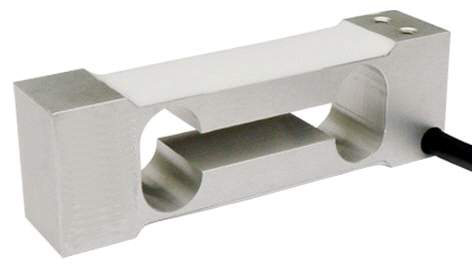

Single Point Load Cell BSP608Capacities: 0.5, 1, 2, 3, 5 kg.

Attributes

• For Eccentric Load
• Suitable for Platform Sizes up to 20 x 20 cm
• Easy Mounting
• Optional Accessories available
• Environmental Protection IP 65
• Input Resistance 410 Ω ± 10 Ω
• Output Resistance 350 Ω ± 3 Ω
• Insulation Resistance > 5 GΩ
• Load Cell Body made of Aluminium
• Sensitivity 1.00 mV/V (1kg) or 2.00 mV/V (2kg)
• Accuracy Class 0.02 %
• Non-Linearity ≤ 0.02 %
• Zero Balance ≤ 5 %
• Safe Load Limit 150 %
• Breaking Load 200 %
• ATEX Operation with Safety Barriers
