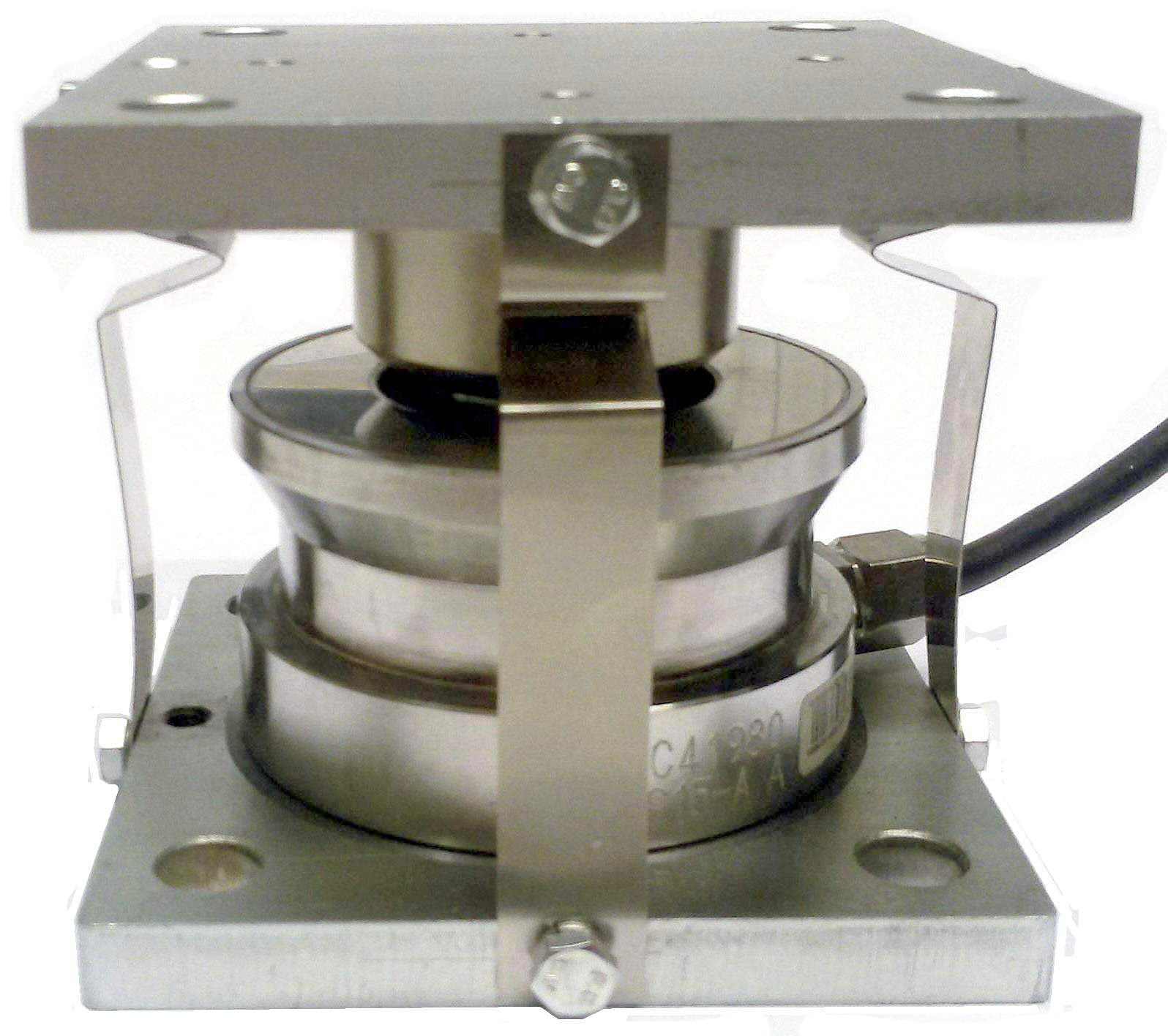

Weighing Module B-DJ-M8Capacities: 1,000; 2,200; 3,300; 4,700; 10,000; 15,000; 22,000; 33,000; 47,000 kg.

B-DJ-M8

Attributes

  • For Compression Load
  • Parallel Connection possible
  • Easy Mounting
  • Environmental Protection IP 68
  • Input Resistance 1450 Ω ± 50 Ω
  • Output Resistance 1405 Ω ± 5 Ω
  • Insulation Resistance > 5 GΩ
  • Load Cell Body made of Stainless Steel (17-4PH)
  • Other Parts made of Stainless Steel or Galvanised Steel
  • Sensitivity 2.85 mV/V
  • Accuracy Class 0.02% or C3 (10-47t)
  • Non-Linearity ≤ 0.02 %
  • Zero Balance ≤ 1 %
  • Safe Load Limit 150 %
  • Breaking Load 300 %
  • ATEX Operation with Safety Barriers
